Kohler 17–25 HP Vacuum Fuel Pump Kit

4.7 (5)

A pulse-type fuel pump for Kohler Command, Courage and 7000 series twins and Kawasaki FH/FX engines, with an AM116304 filter and line.

$11.98price at last check, Sep 27, 2026

Fits models

Kohler 7000 series
Command CH/CV17–CV25
Courage twins
CH/CV730–CV740
Kawasaki FH500V
FX730V
FD series

Replaces: 24 393 04-S, 24 393 16-S, 491922, 691034, 692313, 808492, 808656, LG808656, M138498, M145667, 49040-7001, AM116304

Aftermarket part, not made by the engine manufacturer. Match the pulse port on your old pump.

About this kit

A rider that runs fine for ten minutes then starves and stalls often has a tired fuel pump rather than a carb problem. The diaphragm inside the pump hardens and stops pulling fuel on every pulse. This replacement fits Kohler 17 to 25 HP and Kawasaki 15 to 25 HP engines.

It replaces Kohler 24 393 04-S and 16-S, John Deere LG808656, M138498 and M145667, and Kawasaki 49040-7001. A 1/4" inside diameter fuel line and an AM116304 filter that takes 1/4" or 5/16" lines come with it.

Replaces Kohler 24 393 04-S / 16-S and Kawasaki 49040-7001
John Deere LG808656, M138498, M145667
AM116304 filter for 1/4" and 5/16" lines
1/4" ID fuel line included

In the box

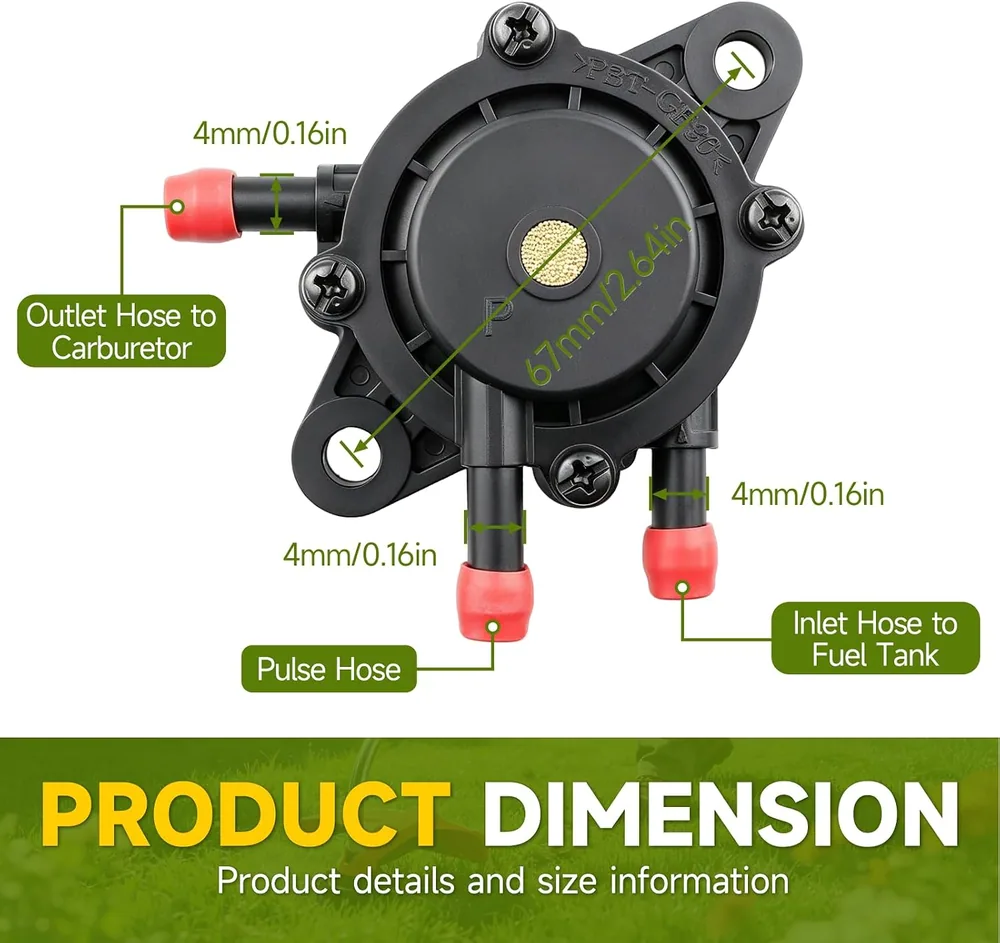

1 vacuum fuel pump
1 fuel filter AM116304
1 fuel line

For machine brand	Kohler
Replaces	24 393 04-S, 24 393 16-S, 491922, 691034, 692313, 808492
Items in the kit	3
Kit options	1
Rating	4.7 / 5 from 5 reviews
Category	Mower, Generator & Pressure Washer Engine Parts
